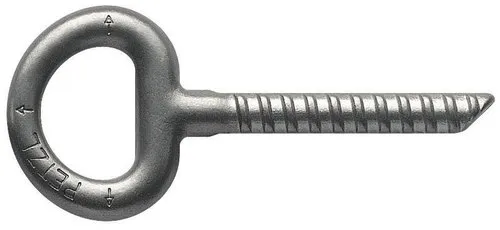

PETZL Collinox Anchor

Name: PETZL Collinox Anchor
Brand: PETZL
SKU: PETZL Collinox Anchor
Availability: InStock

Original price was: ₹1,799.00.Current price is: ₹1,590.00.

Description:

Specifications:

References	G100AA00
Diameter	10 mm
Weight	95 g
	Granite, gneiss higher than 80 MPa: preliminary testing recommended
	Hard limestone higher than 80 MPa: preliminary testing recommended Limestone and medium sandstone 80 MPa to 45 MPa: preliminary testing recommended
	Soft rock (soft sandstone, limestone) lower than 45 MPa: preliminary testing required
	Very high quality concrete (civil engineering structure) higher than 50 MPa: preliminary testing recommended
	Medium quality concrete from 25 to 50 MPa: preliminary testing recommended
Length	7 cm
Drilling depth	7-7,5 cm
Drilling diameter	12 mm
Type of installation	G101AA00 glue (or other glues approved by Petzl)
Suggested drying time	40 min – 10 h
Shear strength in 50 MPa concrete	25 kN
Pull-out strength in concrete 50 MPa	15 kN
	Times are given for G101AA00 glue (times may vary depending on the glue used and on the external environment
